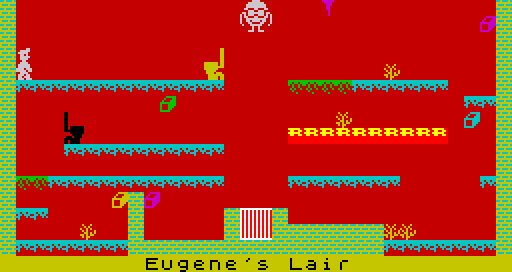

49152: Eugene's Lair (teleport: 36)
Used by the routine at 34436.
eugene's_lair
The first 512 bytes are the attributes that define the layout of the cavern.
49152 DEFB 46,16,16,16,16,16,16,16 Attributes
49160 DEFB 16,16,16,16,16,16,16,16
49168 DEFB 16,16,16,16,19,16,16,16
49176 DEFB 16,16,16,16,16,16,16,46
49184 DEFB 46,16,16,16,16,16,16,16
49192 DEFB 16,16,16,16,16,16,16,16
49200 DEFB 16,16,16,16,16,16,16,16
49208 DEFB 16,16,16,16,16,16,16,46
49216 DEFB 46,16,16,16,16,16,16,16
49224 DEFB 16,16,16,16,16,16,16,16
49232 DEFB 16,16,16,16,16,16,16,16
49240 DEFB 16,16,16,16,16,16,16,46
49248 DEFB 46,16,16,16,16,16,16,16
49256 DEFB 16,16,16,16,16,16,16,16
49264 DEFB 16,16,16,16,16,16,16,16
49272 DEFB 16,16,16,16,16,16,16,46
49280 DEFB 46,16,16,16,16,16,16,16
49288 DEFB 16,16,16,16,16,16,16,16
49296 DEFB 16,16,16,16,16,16,16,16
49304 DEFB 22,16,16,16,16,16,16,46
49312 DEFB 46,21,21,21,21,21,21,21
49320 DEFB 21,21,21,21,21,21,16,16
49328 DEFB 16,16,20,20,20,20,21,21
49336 DEFB 21,21,21,21,16,16,16,46
49344 DEFB 46,16,16,16,16,16,16,16
49352 DEFB 16,16,16,16,16,16,16,16
49360 DEFB 16,16,16,16,16,16,16,16
49368 DEFB 16,16,16,16,16,21,21,46
49376 DEFB 46,16,16,16,16,16,16,16
49384 DEFB 16,16,16,16,16,16,16,16
49392 DEFB 16,16,16,16,16,22,16,16
49400 DEFB 16,16,16,16,16,16,16,46
49408 DEFB 46,16,16,16,16,16,16,16
49416 DEFB 16,16,16,16,16,16,16,16
49424 DEFB 16,16,86,86,86,86,86,86
49432 DEFB 86,86,86,86,16,16,16,46
49440 DEFB 46,16,16,16,21,21,21,21
49448 DEFB 21,21,21,21,21,21,16,16
49456 DEFB 16,16,16,16,16,16,16,16
49464 DEFB 16,16,16,16,16,16,16,46
49472 DEFB 46,16,16,16,16,16,16,16
49480 DEFB 16,16,16,16,16,16,16,16
49488 DEFB 16,16,16,16,16,16,16,16
49496 DEFB 16,16,16,16,16,16,16,46
49504 DEFB 46,20,20,21,21,21,21,21
49512 DEFB 21,21,21,21,21,21,16,16
49520 DEFB 16,16,21,21,21,21,21,21
49528 DEFB 21,16,16,16,16,16,21,46
49536 DEFB 46,16,16,16,16,16,16,16
49544 DEFB 46,16,16,16,16,16,16,16
49552 DEFB 16,16,16,16,16,16,16,16
49560 DEFB 16,16,16,16,16,16,16,46
49568 DEFB 46,21,21,16,16,16,16,16
49576 DEFB 46,16,16,16,16,16,46,16
49584 DEFB 16,46,16,16,16,16,16,16
49592 DEFB 16,16,16,16,16,16,16,46
49600 DEFB 46,16,16,16,16,22,16,16
49608 DEFB 46,16,16,16,16,16,46,16
49616 DEFB 16,46,46,46,46,46,46,46
49624 DEFB 22,22,16,16,16,16,16,46
49632 DEFB 46,21,21,21,21,21,21,21
49640 DEFB 46,46,46,46,46,46,46,46
49648 DEFB 46,46,46,46,46,46,46,46
49656 DEFB 21,21,21,21,21,21,21,46
The next 32 bytes are copied to 32768 and specify the cavern name.
49664 DEFM " Eugene's Lair " Cavern name
The next 72 bytes are copied to 32800 and contain the attributes and graphic data for the tiles used to build the cavern.
background_4 floor_4 crumbling_floor_4 wall_4 conveyor_4 nasty1_4 nasty2_4 extra_4
49696 DEFB 16,0,0,0,0,0,0,0,0 Background
49705 DEFB 21,255,255,219,110,197,64,0,0 Floor
49714 DEFB 20,255,219,165,36,82,32,8,0 Crumbling floor
49723 DEFB 46,34,255,136,255,34,255,136,255 Wall
49732 DEFB 86,252,102,252,102,0,0,0,0 Conveyor
49741 DEFB 22,68,40,148,81,53,214,88,16 Nasty 1
49750 DEFB 19,126,60,28,24,24,8,8,8 Nasty 2
49759 DEFB 0,0,0,0,0,0,0,0,0 Extra (unused)
The next seven bytes are copied to 32872-32878 and specify Miner Willy's initial location and appearance in the cavern.
49768 DEFB 48 Pixel y-coordinate * 2 (see 32872)
49769 DEFB 0 Animation frame (see 32873)
49770 DEFB 0 Direction and movement flags: facing right (see 32874)
49771 DEFB 0 Airborne status indicator (see 32875)
49772 DEFW 23649 Location in the attribute buffer at 23552: (3,1) (see 32876)
49774 DEFB 0 Jumping animation counter (see 32878)
The next four bytes are copied to 32879 and specify the direction, location and length of the conveyor.
49775 DEFB 0 Direction (left)
49776 DEFW 30738 Location in the screen buffer at 28672: (8,18)
49778 DEFB 10 Length
The next byte is copied to 32883 and specifies the border colour.
49779 DEFB 1 Border colour
The next byte is copied to 32884, but is not used.
49780 DEFB 0 Unused
The next 25 bytes are copied to 32885 and specify the location and initial colour of the items in the cavern.
49781 DEFB 19 Item 1 at (1,30)
49782 DEFW 23614
49784 DEFB 96
49785 DEFB 255
49786 DEFB 20 Item 2 at (6,10)
49787 DEFW 23754
49789 DEFB 96
49790 DEFB 255
49791 DEFB 21 Item 3 at (7,29)
49792 DEFW 23805
49794 DEFB 96
49795 DEFB 255
49796 DEFB 22 Item 4 at (12,7)
49797 DEFW 23943
49799 DEFB 104
49800 DEFB 255
49801 DEFB 19 Item 5 at (12,9)
49802 DEFW 23945
49804 DEFB 104
49805 DEFB 255
49806 DEFB 255 Terminator
The next 37 bytes are copied to 32911 and define the portal graphic and its location.
portal04
49807 DEFB 87 Attribute
49808 DEFB 255,255,170,170,170,170,170,170 Graphic data
49816 DEFB 170,170,170,170,170,170,170,170
49824 DEFB 170,170,170,170,170,170,170,170
49832 DEFB 170,170,170,170,170,170,255,255
49840 DEFW 23983 Location in the attribute buffer at 23552: (13,15)
49842 DEFW 26799 Location in the screen buffer at 24576: (13,15)
The next eight bytes are copied to 32948 and define the item graphic.
item04
49844 DEFB 31,35,71,255,143,142,140,248 Item graphic data
The next byte is copied to 32956 and specifies the initial air supply in the cavern.
49852 DEFB 63 Air
The next byte is copied to 32957 and initialises the game clock.
49853 DEFB 128 Game clock
The next 28 bytes are copied to 32958 and define the horizontal guardians.
49854 DEFB 22 Horizontal guardian 1: y=3, initial x=12, 1<=x<=12, speed=normal
49855 DEFW 23660
49857 DEFB 96
49858 DEFB 7
49859 DEFB 97
49860 DEFB 108
49861 DEFB 16 Horizontal guardian 2: y=7, initial x=4, 4<=x<=12, speed=normal
49862 DEFW 23780
49864 DEFB 96
49865 DEFB 0
49866 DEFB 228
49867 DEFB 236
49868 DEFB 255,0,0,0,0,0,0 Horizontal guardian 3 (unused)
49875 DEFB 0,0,0,0,0,0,0 Horizontal guardian 4 (unused)
49882 DEFB 255 Terminator
The next two bytes are copied to 32987 and 32988 and specify Eugene's initial direction and pixel y-coordinate.
49883 DEFB 0 Initial direction (down)
49884 DEFB 0 Initial pixel y-coordinate
The next three bytes are unused.
49885 DEFB 0,0,0 Unused
The next 32 bytes define the Eugene graphic.
eugene
49888 DEFB 3,192,15,240,31,248,31,248 Eugene graphic data
49896 DEFB 49,140,14,112,111,246,174,117
49904 DEFB 177,141,159,249,155,217,140,49
49912 DEFB 71,226,2,64,2,64,14,112
The next 256 bytes are copied to 33024 and define the guardian graphics.
eugene's_lair_guardian0 eugene's_lair_guardian1 eugene's_lair_guardian2 eugene's_lair_guardian3 eugene's_lair_guardian4 eugene's_lair_guardian5 eugene's_lair_guardian6 eugene's_lair_guardian7
49920 DEFB 192,0,192,0,192,0,192,0 Guardian graphic data
49928 DEFB 192,0,192,0,192,0,223,192
49936 DEFB 223,192,255,192,31,192,15,128
49944 DEFB 119,128,255,0,223,0,223,0
49952 DEFB 48,0,48,0,48,0,48,0
49960 DEFB 48,32,48,192,51,0,52,0
49968 DEFB 55,240,63,240,7,240,3,224
49976 DEFB 29,224,63,192,55,192,55,192
49984 DEFB 12,0,12,0,12,32,12,64
49992 DEFB 12,64,12,128,12,128,13,0
50000 DEFB 13,252,15,252,1,252,0,248
50008 DEFB 7,120,15,240,13,240,13,240
50016 DEFB 3,0,3,0,3,0,3,0
50024 DEFB 3,2,3,12,3,48,3,64
50032 DEFB 3,127,3,255,0,127,0,62
50040 DEFB 1,222,3,252,3,124,3,124
50048 DEFB 0,192,0,192,0,192,0,192
50056 DEFB 64,192,48,192,12,192,2,192
50064 DEFB 254,192,255,192,254,0,124,0
50072 DEFB 123,128,63,192,62,192,62,192
50080 DEFB 0,48,0,48,4,48,2,48
50088 DEFB 2,48,1,48,1,48,0,176
50096 DEFB 63,176,63,240,63,128,31,0
50104 DEFB 30,224,15,240,15,176,15,176
50112 DEFB 0,12,0,12,0,12,0,12
50120 DEFB 4,12,3,12,0,204,0,44
50128 DEFB 15,236,15,252,15,224,7,192
50136 DEFB 7,184,3,252,3,236,3,236
50144 DEFB 0,3,0,3,0,3,0,3
50152 DEFB 0,3,0,3,0,3,3,251
50160 DEFB 3,251,3,255,3,248,1,240
50168 DEFB 1,238,0,255,0,251,0,251
