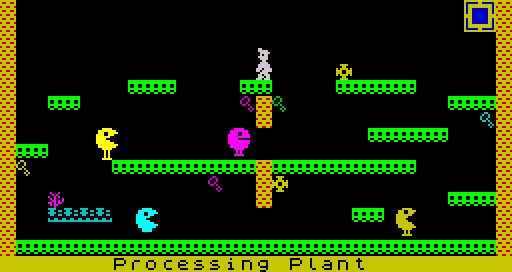

50176: Processing Plant (teleport: 136)
Used by the routine at 34436.
processing_plant
The first 512 bytes are the attributes that define the layout of the cavern.
50176 DEFB 22,0,0,0,0,0,0,0 Attributes
50184 DEFB 0,0,0,0,0,0,0,0
50192 DEFB 0,0,0,0,0,0,0,0
50200 DEFB 0,0,0,0,0,0,0,22
50208 DEFB 22,0,0,0,0,0,0,0
50216 DEFB 0,0,0,0,0,0,0,0
50224 DEFB 0,0,0,0,0,0,0,0
50232 DEFB 0,0,0,0,0,0,0,22
50240 DEFB 22,0,0,0,0,0,0,0
50248 DEFB 0,0,0,0,0,0,0,0
50256 DEFB 0,0,0,0,0,0,0,0
50264 DEFB 0,0,0,0,0,0,0,22
50272 DEFB 22,0,0,0,0,0,0,0
50280 DEFB 0,0,0,0,0,0,0,0
50288 DEFB 0,0,0,0,0,0,0,0
50296 DEFB 0,0,0,0,0,0,0,22
50304 DEFB 22,0,0,0,0,0,0,0
50312 DEFB 0,0,0,0,0,0,0,0
50320 DEFB 0,0,0,0,0,6,0,0
50328 DEFB 0,0,0,0,0,0,0,22
50336 DEFB 22,0,0,0,0,0,0,0
50344 DEFB 68,68,68,0,0,0,0,68
50352 DEFB 68,0,0,0,0,68,68,68
50360 DEFB 68,68,0,0,0,0,0,22
50368 DEFB 22,0,0,68,68,0,0,0
50376 DEFB 0,0,0,0,0,0,0,0
50384 DEFB 22,0,0,0,0,0,0,0
50392 DEFB 0,0,0,0,68,68,68,22
50400 DEFB 22,0,0,0,0,0,0,0
50408 DEFB 0,0,0,0,0,0,0,0
50416 DEFB 22,0,0,0,0,0,0,0
50424 DEFB 0,0,0,0,0,0,0,22
50432 DEFB 22,0,0,0,0,0,0,0
50440 DEFB 0,0,0,0,0,0,0,0
50448 DEFB 0,0,0,0,0,0,0,68
50456 DEFB 68,68,68,68,0,0,0,22
50464 DEFB 22,68,68,0,0,0,0,0
50472 DEFB 0,0,0,0,0,0,0,0
50480 DEFB 0,0,0,0,0,0,0,0
50488 DEFB 0,0,0,0,0,0,0,22
50496 DEFB 22,0,0,0,0,0,0,68
50504 DEFB 68,68,68,68,68,68,68,68
50512 DEFB 22,68,68,68,68,68,68,68
50520 DEFB 68,68,0,0,0,0,0,22
50528 DEFB 22,0,0,0,0,0,0,0
50536 DEFB 0,0,0,0,0,0,0,0
50544 DEFB 22,6,0,0,0,0,0,0
50552 DEFB 0,0,0,0,0,0,0,22
50560 DEFB 22,0,0,67,0,0,0,0
50568 DEFB 0,0,0,0,0,0,0,0
50576 DEFB 22,0,0,0,0,0,0,0
50584 DEFB 0,0,0,0,68,68,68,22
50592 DEFB 22,0,0,5,5,5,5,0
50600 DEFB 0,0,0,0,0,0,0,0
50608 DEFB 0,0,0,0,0,0,68,68
50616 DEFB 0,0,0,0,0,0,0,22
50624 DEFB 22,0,0,0,0,0,0,0
50632 DEFB 0,0,0,0,0,0,0,0
50640 DEFB 0,0,0,0,0,0,0,0
50648 DEFB 0,0,0,0,0,0,0,22
50656 DEFB 22,68,68,68,68,68,68,68
50664 DEFB 68,68,68,68,68,68,68,68
50672 DEFB 68,68,68,68,68,68,68,68
50680 DEFB 68,68,68,68,68,68,68,22
The next 32 bytes are copied to 32768 and specify the cavern name.
50688 DEFM " Processing Plant " Cavern name
The next 72 bytes are copied to 32800 and contain the attributes and graphic data for the tiles used to build the cavern.
background_5 floor_5 crumbling_floor_5 wall_5 conveyor_5 nasty1_5 nasty2_5 extra_5
50720 DEFB 0,0,0,0,0,0,0,0,0 Background
50729 DEFB 68,255,255,153,153,255,153,102,0 Floor
50738 DEFB 4,255,219,165,36,82,32,8,0 Crumbling floor (unused)
50747 DEFB 22,255,153,255,102,255,153,255,102 Wall
50756 DEFB 5,240,102,240,102,0,153,255,0 Conveyor
50765 DEFB 67,68,40,148,81,53,214,88,16 Nasty 1
50774 DEFB 6,60,24,189,231,231,189,24,60 Nasty 2
50783 DEFB 0,0,0,0,0,0,0,0,0 Extra (unused)
The next seven bytes are copied to 32872-32878 and specify Miner Willy's initial location and appearance in the cavern.
50792 DEFB 48 Pixel y-coordinate * 2 (see 32872)
50793 DEFB 3 Animation frame (see 32873)
50794 DEFB 1 Direction and movement flags: facing left (see 32874)
50795 DEFB 0 Airborne status indicator (see 32875)
50796 DEFW 23663 Location in the attribute buffer at 23552: (3,15) (see 32876)
50798 DEFB 0 Jumping animation counter (see 32878)
The next four bytes are copied to 32879 and specify the direction, location and length of the conveyor.
50799 DEFB 0 Direction (left)
50800 DEFW 30883 Location in the screen buffer at 28672: (13,3)
50802 DEFB 4 Length
The next byte is copied to 32883 and specifies the border colour.
50803 DEFB 2 Border colour
The next byte is copied to 32884, but is not used.
50804 DEFB 0 Unused
The next 25 bytes are copied to 32885 and specify the location and initial colour of the items in the cavern.
50805 DEFB 3 Item 1 at (6,15)
50806 DEFW 23759
50808 DEFB 96
50809 DEFB 255
50810 DEFB 4 Item 2 at (6,17)
50811 DEFW 23761
50813 DEFB 96
50814 DEFB 255
50815 DEFB 5 Item 3 at (7,30)
50816 DEFW 23806
50818 DEFB 96
50819 DEFB 255
50820 DEFB 6 Item 4 at (10,1)
50821 DEFW 23873
50823 DEFB 104
50824 DEFB 255
50825 DEFB 3 Item 5 at (11,13)
50826 DEFW 23917
50828 DEFB 104
50829 DEFB 255
50830 DEFB 255 Terminator
The next 37 bytes are copied to 32911 and define the portal graphic and its location.
portal05
50831 DEFB 14 Attribute
50832 DEFB 255,255,129,129,191,253,191,253 Graphic data
50840 DEFB 176,13,176,13,176,13,240,15
50848 DEFB 240,15,176,13,176,13,176,13
50856 DEFB 191,253,191,253,129,129,255,255
50864 DEFW 23581 Location in the attribute buffer at 23552: (0,29)
50866 DEFW 24605 Location in the screen buffer at 24576: (0,29)
The next eight bytes are copied to 32948 and define the item graphic.
item05
50868 DEFB 48,72,136,144,104,4,10,4 Item graphic data
The next byte is copied to 32956 and specifies the initial air supply in the cavern.
50876 DEFB 63 Air
The next byte is copied to 32957 and initialises the game clock.
50877 DEFB 128 Game clock
The next 28 bytes are copied to 32958 and define the horizontal guardians.
50878 DEFB 70 Horizontal guardian 1: y=8, initial x=6, 6<=x<=13, speed=normal
50879 DEFW 23814
50881 DEFB 104
50882 DEFB 0
50883 DEFB 6
50884 DEFB 13
50885 DEFB 67 Horizontal guardian 2: y=8, initial x=14, 14<=x<=21, speed=normal
50886 DEFW 23822
50888 DEFB 104
50889 DEFB 1
50890 DEFB 14
50891 DEFB 21
50892 DEFB 69 Horizontal guardian 3: y=13, initial x=8, 8<=x<=20, speed=normal
50893 DEFW 23976
50895 DEFB 104
50896 DEFB 2
50897 DEFB 168
50898 DEFB 180
50899 DEFB 6 Horizontal guardian 4: y=13, initial x=24, 24<=x<=29, speed=normal
50900 DEFW 23992
50902 DEFB 104
50903 DEFB 3
50904 DEFB 184
50905 DEFB 189
50906 DEFB 255 Terminator
The next two bytes are copied to 32987 and 32988 but are not used.
50907 DEFB 0,0 Unused
The next 28 bytes are copied to 32989 and define the vertical guardians.
50909 DEFB 255,0,0,0,0,0,0 Vertical guardian 1 (unused)
50916 DEFB 0,0,0,0,0,0,0 Vertical guardian 2 (unused)
50923 DEFB 0,0,0,0,0,0,0 Vertical guardian 3 (unused)
50930 DEFB 0,0,0,0,0,0,0 Vertical guardian 4 (unused)
The next 7 bytes are unused.
50937 DEFB 0,0,0,0,0,0,0 Unused
The next 256 bytes are copied to 33024 and define the guardian graphics.
processing_plant_guardian0 processing_plant_guardian1 processing_plant_guardian2 processing_plant_guardian3 processing_plant_guardian4 processing_plant_guardian5 processing_plant_guardian6 processing_plant_guardian7
50944 DEFB 31,0,127,192,115,224,243,128 Guardian graphic data
50952 DEFB 254,0,248,0,254,0,255,128
50960 DEFB 127,224,127,192,31,0,10,0
50968 DEFB 10,0,10,0,10,0,31,0
50976 DEFB 7,192,31,240,30,112,62,120
50984 DEFB 63,248,62,0,63,248,63,248
50992 DEFB 31,240,31,240,7,192,2,128
51000 DEFB 2,128,7,192,0,0,0,0
51008 DEFB 1,240,7,252,7,62,15,56
51016 DEFB 15,224,15,128,15,224,15,248
51024 DEFB 7,254,7,252,1,240,1,240
51032 DEFB 0,0,0,0,0,0,0,0
51040 DEFB 0,124,1,207,1,206,3,252
51048 DEFB 3,240,3,224,3,240,3,252
51056 DEFB 1,254,1,255,0,124,0,40
51064 DEFB 0,40,0,124,0,0,0,0
51072 DEFB 62,0,243,128,115,128,63,192
51080 DEFB 15,192,7,192,15,192,63,192
51088 DEFB 127,128,255,128,62,0,20,0
51096 DEFB 20,0,62,0,0,0,0,0
51104 DEFB 15,128,63,224,124,224,28,240
51112 DEFB 7,240,1,240,7,240,31,240
51120 DEFB 127,224,63,224,15,128,15,128
51128 DEFB 0,0,0,0,0,0,0,0
51136 DEFB 3,224,15,248,14,120,30,124
51144 DEFB 31,252,0,124,31,252,31,252
51152 DEFB 15,248,15,248,3,224,1,64
51160 DEFB 1,64,3,224,0,0,0,0
51168 DEFB 0,248,3,254,7,206,1,207
51176 DEFB 0,127,0,31,0,127,1,255
51184 DEFB 7,254,3,254,0,248,0,80
51192 DEFB 0,80,0,80,0,80,0,248
