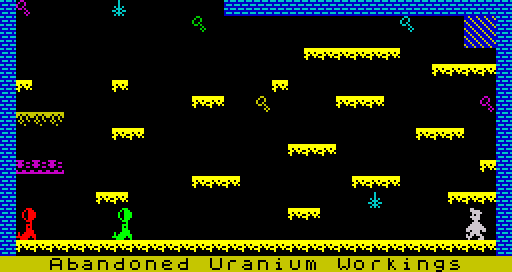

48128: Abandoned Uranium Workings (teleport: 126)
Used by the routine at 34436.
abandoned_uranium_workings
The first 512 bytes are the attributes that define the layout of the cavern.
48128 DEFB 41,0,0,0,0,0,0,5 Attributes
48136 DEFB 0,0,0,0,0,0,41,41
48144 DEFB 41,41,41,41,41,41,41,41
48152 DEFB 41,41,41,41,41,41,41,41
48160 DEFB 41,0,0,0,0,0,0,0
48168 DEFB 0,0,0,0,0,0,0,0
48176 DEFB 0,0,0,0,0,0,0,0
48184 DEFB 0,0,0,0,0,0,0,41
48192 DEFB 41,0,0,0,0,0,0,0
48200 DEFB 0,0,0,0,0,0,0,0
48208 DEFB 0,0,0,0,0,0,0,0
48216 DEFB 0,0,0,0,0,0,0,41
48224 DEFB 41,0,0,0,0,0,0,0
48232 DEFB 0,0,0,0,0,0,0,0
48240 DEFB 0,0,0,70,70,70,70,70
48248 DEFB 70,0,0,0,0,0,0,41
48256 DEFB 41,0,0,0,0,0,0,0
48264 DEFB 0,0,0,0,0,0,0,0
48272 DEFB 0,0,0,0,0,0,0,0
48280 DEFB 0,0,0,70,70,70,70,41
48288 DEFB 41,70,0,0,0,0,0,70
48296 DEFB 0,0,0,0,0,0,0,0
48304 DEFB 0,70,0,0,0,0,0,0
48312 DEFB 0,0,0,0,0,0,0,41
48320 DEFB 41,0,0,0,0,0,0,0
48328 DEFB 0,0,0,0,70,70,0,0
48336 DEFB 0,0,0,0,0,70,70,70
48344 DEFB 0,0,0,0,0,0,0,41
48352 DEFB 41,6,6,6,0,0,0,0
48360 DEFB 0,0,0,0,0,0,0,0
48368 DEFB 0,0,0,0,0,0,0,0
48376 DEFB 0,0,0,0,0,0,0,41
48384 DEFB 41,0,0,0,0,0,0,70
48392 DEFB 70,0,0,0,0,0,0,0
48400 DEFB 0,0,0,0,0,0,0,0
48408 DEFB 0,0,70,70,70,0,0,41
48416 DEFB 41,0,0,0,0,0,0,0
48424 DEFB 0,0,0,0,0,0,0,0
48432 DEFB 0,0,70,70,70,0,0,0
48440 DEFB 0,0,0,0,0,0,0,41
48448 DEFB 41,3,3,3,0,0,0,0
48456 DEFB 0,0,0,0,0,0,0,0
48464 DEFB 0,0,0,0,0,0,0,0
48472 DEFB 0,0,0,0,0,0,70,41
48480 DEFB 41,0,0,0,0,0,0,0
48488 DEFB 0,0,0,0,70,70,70,0
48496 DEFB 0,0,0,0,0,0,70,70
48504 DEFB 70,0,0,0,0,0,0,41
48512 DEFB 41,0,0,0,0,0,70,70
48520 DEFB 0,0,0,0,0,0,0,0
48528 DEFB 0,0,0,0,0,0,0,5
48536 DEFB 0,0,0,0,70,70,70,41
48544 DEFB 41,0,0,0,0,0,0,0
48552 DEFB 0,0,0,0,0,0,0,0
48560 DEFB 0,0,70,70,0,0,0,0
48568 DEFB 0,0,0,0,0,0,0,41
48576 DEFB 41,0,0,0,0,0,0,0
48584 DEFB 0,0,0,0,0,0,0,0
48592 DEFB 0,0,0,0,0,0,0,0
48600 DEFB 0,0,0,0,0,0,0,41
48608 DEFB 41,70,70,70,70,70,70,70
48616 DEFB 70,70,70,70,70,70,70,70
48624 DEFB 70,70,70,70,70,70,70,70
48632 DEFB 70,70,70,70,70,70,70,41
The next 32 bytes are copied to 32768 and specify the cavern name.
48640 DEFM " Abandoned Uranium Workings " Cavern name
The next 72 bytes are copied to 32800 and contain the attributes and graphic data for the tiles used to build the cavern.
background_3 floor_3 crumbling_floor_3 wall_3 conveyor_3 nasty1_3 nasty2_3 extra_3
48672 DEFB 0,0,0,0,0,0,0,0,0 Background
48681 DEFB 70,255,255,219,110,197,64,0,0 Floor
48690 DEFB 6,255,219,165,36,82,32,8,0 Crumbling floor
48699 DEFB 41,34,255,136,255,34,255,136,255 Wall
48708 DEFB 3,240,102,240,102,0,153,255,0 Conveyor
48717 DEFB 4,68,40,148,81,53,214,88,16 Nasty 1 (unused)
48726 DEFB 5,16,16,16,84,56,214,56,84 Nasty 2
48735 DEFB 0,0,0,0,0,0,0,0,0 Extra (unused)
The next seven bytes are copied to 32872-32878 and specify Miner Willy's initial location and appearance in the cavern.
48744 DEFB 208 Pixel y-coordinate * 2 (see 32872)
48745 DEFB 0 Animation frame (see 32873)
48746 DEFB 1 Direction and movement flags: facing left (see 32874)
48747 DEFB 0 Airborne status indicator (see 32875)
48748 DEFW 23997 Location in the attribute buffer at 23552: (13,29) (see 32876)
48750 DEFB 0 Jumping animation counter (see 32878)
The next four bytes are copied to 32879 and specify the direction, location and length of the conveyor.
48751 DEFB 1 Direction (right)
48752 DEFW 30785 Location in the screen buffer at 28672: (10,1)
48754 DEFB 3 Length
The next byte is copied to 32883 and specifies the border colour.
48755 DEFB 2 Border colour
The next byte is copied to 32884, but is not used.
48756 DEFB 0 Unused
The next 25 bytes are copied to 32885 and specify the location and initial colour of the items in the cavern.
48757 DEFB 3 Item 1 at (0,1)
48758 DEFW 23553
48760 DEFB 96
48761 DEFB 255
48762 DEFB 4 Item 2 at (1,12)
48763 DEFW 23596
48765 DEFB 96
48766 DEFB 255
48767 DEFB 5 Item 3 at (1,25)
48768 DEFW 23609
48770 DEFB 96
48771 DEFB 255
48772 DEFB 6 Item 4 at (6,16)
48773 DEFW 23760
48775 DEFB 96
48776 DEFB 255
48777 DEFB 3 Item 5 at (6,30)
48778 DEFW 23774
48780 DEFB 96
48781 DEFB 255
48782 DEFB 255 Terminator
The next 37 bytes are copied to 32911 and define the portal graphic and its location.
portal03
48783 DEFB 14 Attribute
48784 DEFB 34,34,17,17,136,136,68,68 Graphic data
48792 DEFB 34,34,17,17,136,136,68,68
48800 DEFB 34,34,17,17,136,136,68,68
48808 DEFB 34,34,17,17,136,136,68,68
48816 DEFW 23613 Location in the attribute buffer at 23552: (1,29)
48818 DEFW 24637 Location in the screen buffer at 24576: (1,29)
The next eight bytes are copied to 32948 and define the item graphic.
item03
48820 DEFB 48,72,136,144,104,4,10,4 Item graphic data
The next byte is copied to 32956 and specifies the initial air supply in the cavern.
48828 DEFB 63 Air
The next byte is copied to 32957 and initialises the game clock.
48829 DEFB 128 Game clock
The next 28 bytes are copied to 32958 and define the horizontal guardians.
48830 DEFB 66 Horizontal guardian 1: y=13, initial x=1, 1<=x<=10, speed=normal
48831 DEFW 23969
48833 DEFB 104
48834 DEFB 0
48835 DEFB 161
48836 DEFB 170
48837 DEFB 68 Horizontal guardian 2: y=13, initial x=7, 6<=x<=15, speed=normal
48838 DEFW 23975
48840 DEFB 104
48841 DEFB 0
48842 DEFB 166
48843 DEFB 175
48844 DEFB 255,0,0,0,0,0,0 Horizontal guardian 3 (unused)
48851 DEFB 0,0,0,0,0,0,0 Horizontal guardian 4 (unused)
48858 DEFB 255 Terminator
The next two bytes are copied to 32987 and 32988 but are not used.
48859 DEFB 0,0 Unused
The next 28 bytes are copied to 32989 and define the vertical guardians.
48861 DEFB 255,0,0,0,0,0,0 Vertical guardian 1 (unused)
48868 DEFB 0,0,0,0,0,0,0 Vertical guardian 2 (unused)
48875 DEFB 0,0,0,0,0,0,0 Vertical guardian 3 (unused)
48882 DEFB 0,0,0,0,0,0,0 Vertical guardian 4 (unused)
The next 7 bytes are unused.
48889 DEFB 0,0,0,0,0,0,0 Unused
The next 256 bytes are copied to 33024 and define the guardian graphics.
abandoned_uranium_workings_guardian0 abandoned_uranium_workings_guardian1 abandoned_uranium_workings_guardian2 abandoned_uranium_workings_guardian3 abandoned_uranium_workings_guardian4 abandoned_uranium_workings_guardian5 abandoned_uranium_workings_guardian6 abandoned_uranium_workings_guardian7
48896 DEFB 7,0,11,128,19,192,19,192 Guardian graphic data
48904 DEFB 19,192,11,128,7,0,1,0
48912 DEFB 7,0,5,0,7,0,7,128
48920 DEFB 79,128,95,192,254,192,60,64
48928 DEFB 1,192,2,224,5,208,5,208
48936 DEFB 5,208,2,224,1,192,0,64
48944 DEFB 1,192,1,64,1,192,1,224
48952 DEFB 35,224,47,240,127,176,31,16
48960 DEFB 0,112,0,232,1,228,1,228
48968 DEFB 1,228,0,232,0,112,0,16
48976 DEFB 0,112,0,80,0,112,0,248
48984 DEFB 33,248,39,252,127,236,15,196
48992 DEFB 0,28,0,54,0,99,0,99
49000 DEFB 0,99,0,54,0,28,0,4
49008 DEFB 0,28,0,20,0,28,0,30
49016 DEFB 4,62,4,255,15,251,3,241
49024 DEFB 56,0,108,0,198,0,198,0
49032 DEFB 198,0,108,0,56,0,32,0
49040 DEFB 56,0,40,0,56,0,120,0
49048 DEFB 124,32,255,32,223,240,143,192
49056 DEFB 14,0,23,0,39,128,39,128
49064 DEFB 39,128,23,0,14,0,8,0
49072 DEFB 14,0,10,0,14,0,31,0
49080 DEFB 31,132,63,228,55,254,35,240
49088 DEFB 3,128,7,64,11,160,11,160
49096 DEFB 11,160,7,64,3,128,2,0
49104 DEFB 3,128,2,128,3,128,7,128
49112 DEFB 7,196,15,244,13,254,8,248
49120 DEFB 0,224,1,208,3,200,3,200
49128 DEFB 3,200,1,208,0,224,0,128
49136 DEFB 0,224,0,160,0,224,1,224
49144 DEFB 1,242,3,250,3,127,2,60
