55808: Room 26: East Wall Base (teleport: 2459)
Used by the routine at 35090.

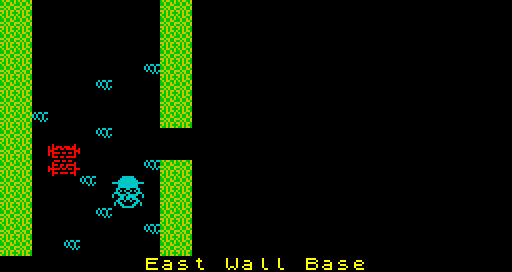

east_wall_base
The first 128 bytes are copied to 32768 and define the room layout. Each bit-pair (bits 7 and 6, 5 and 4, 3 and 2, or 1 and 0 of each byte) determines the type of tile (background, floor, wall or nasty) that will be drawn at the corresponding location.
Input
Output
55808 DEFB 160,0,10,0,0,0,0,0 Room layout
55816 DEFB 160,0,10,0,0,0,0,0
55824 DEFB 160,0,10,0,0,0,0,0
55832 DEFB 160,0,10,0,0,0,0,0
55840 DEFB 160,0,26,0,0,0,0,0
55848 DEFB 160,4,10,0,0,0,0,0
55856 DEFB 160,0,10,0,0,0,0,0
55864 DEFB 164,0,10,0,0,0,0,0
55872 DEFB 160,4,0,0,0,0,0,0
55880 DEFB 160,0,0,0,0,0,0,0
55888 DEFB 160,0,26,0,0,0,0,0
55896 DEFB 160,16,10,0,0,0,0,0
55904 DEFB 160,0,10,0,0,0,0,0
55912 DEFB 160,4,10,0,0,0,0,0
55920 DEFB 160,0,26,0,0,0,0,0
55928 DEFB 160,64,10,0,0,0,0,0
The next 32 bytes are copied to 32896 and specify the room name.
55936 DEFM " East Wall Base " Room name
The next 54 bytes are copied to 32928 and contain the attributes and graphic data for the tiles used to build the room.
background26 floor26 wall26 nasty26 ramp26 conveyor26
55968 DEFB 0,0,0,0,0,0,0,0,0 Background
55977 DEFB 5,91,164,164,85,10,0,0,0 Floor
55986 DEFB 38,89,37,38,217,41,214,84,150 Wall
55995 DEFB 255,0,0,0,0,0,0,0,0 Nasty (unused)
56004 DEFB 255,0,0,0,0,0,0,0,0 Ramp (unused)
56013 DEFB 255,0,0,0,0,0,0,0,0 Conveyor (unused)
The next four bytes are copied to 32982 and specify the direction, location and length of the conveyor.
56022 DEFB 0 Direction (left)
56023 DEFW 0 Location in the attribute buffer at 24064 (unused)
56025 DEFB 0 Length: 0 (there is no conveyor in this room)
The next four bytes are copied to 32986 and specify the direction, location and length of the ramp.
56026 DEFB 0 Direction (up to the left)
56027 DEFW 0 Location in the attribute buffer at 24064 (unused)
56029 DEFB 0 Length: 0 (there is no ramp in this room)
The next byte is copied to 32990 and specifies the border colour.
56030 DEFB 5 Border colour
The next two bytes are copied to 32991, but are not used.
56031 DEFB 0,0 Unused
The next eight bytes are copied to 32993 and define the item graphic.
item26
56033 DEFB 0,0,0,0,0,0,0,0 Item graphic (unused)
The next four bytes are copied to 33001 and specify the rooms to the left, to the right, above and below.
56041 DEFB 27 Room to the left (The Chapel)
56042 DEFB 0 Room to the right (The Off Licence)
56043 DEFB 32 Room above (Halfway up the East Wall)
56044 DEFB 20 Room below (Ballroom East)
The next three bytes are copied to 33005, but are not used.
56045 DEFB 0,0,0 Unused
The next eight pairs of bytes are copied to 33008 and specify the entities (ropes, arrows, guardians) in this room.
56048 DEFB 96,3 Guardian no. 96 (vertical), base sprite 0, x=3 (41728)
56050 DEFB 45,39 Guardian no. 45 (vertical), base sprite 1, x=7 (41320)
56052 DEFB 255,0 Terminator (41976)
56054 DEFB 0,0 Nothing (40960)
56056 DEFB 0,0 Nothing (40960)
56058 DEFB 0,0 Nothing (40960)
56060 DEFB 0,0 Nothing (40960)
56062 DEFB 0,0 Nothing (40960)
