64512: Room 60: The Bow (teleport: 34569)
Used by the routine at 35090.

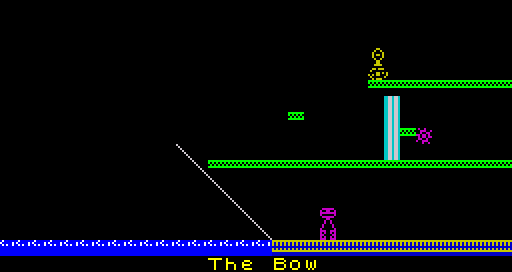

the_bow
The first 128 bytes are copied to 32768 and define the room layout. Each bit-pair (bits 7 and 6, 5 and 4, 3 and 2, or 1 and 0 of each byte) determines the type of tile (background, floor, wall or nasty) that will be drawn at the corresponding location.
Input
Output
64512 DEFB 0,0,0,0,0,0,0,0 Room layout
64520 DEFB 0,0,0,0,0,0,0,0
64528 DEFB 0,0,0,0,0,0,0,0
64536 DEFB 0,0,0,0,0,0,0,0
64544 DEFB 0,0,0,0,0,0,0,0
64552 DEFB 0,0,0,0,0,1,85,85
64560 DEFB 0,0,0,0,0,0,128,0
64568 DEFB 0,0,0,0,4,0,128,0
64576 DEFB 0,0,0,0,0,0,144,0
64584 DEFB 0,0,0,0,0,0,128,0
64592 DEFB 0,0,0,21,85,85,85,85
64600 DEFB 0,0,0,0,0,0,0,0
64608 DEFB 0,0,0,0,0,0,0,0
64616 DEFB 0,0,0,0,0,0,0,0
64624 DEFB 0,0,0,0,0,0,0,0
64632 DEFB 255,255,255,255,192,0,0,0
The next 32 bytes are copied to 32896 and specify the room name.
64640 DEFM " The Bow " Room name
The next 54 bytes are copied to 32928 and contain the attributes and graphic data for the tiles used to build the room.
background60 floor60 wall60 nasty60 ramp60 conveyor60
64672 DEFB 0,0,0,0,0,0,0,0,0 Background
64681 DEFB 68,255,170,85,255,0,0,0,0 Floor
64690 DEFB 61,201,201,201,201,201,201,201,201 Wall
64699 DEFB 79,64,130,82,0,0,0,0,0 Nasty
64708 DEFB 7,128,64,32,16,8,4,2,1 Ramp
64717 DEFB 14,255,170,170,0,170,255,0,0 Conveyor
The next four bytes are copied to 32982 and specify the direction, location and length of the conveyor.
64726 DEFB 1 Direction (right)
64727 DEFW 24561 Location in the attribute buffer at 24064: (15,17)
64729 DEFB 15 Length
The next four bytes are copied to 32986 and specify the direction, location and length of the ramp.
64730 DEFB 0 Direction (up to the left)
64731 DEFW 24528 Location in the attribute buffer at 24064: (14,16)
64733 DEFB 6 Length
The next byte is copied to 32990 and specifies the border colour.
64734 DEFB 5 Border colour
The next two bytes are copied to 32991, but are not used.
64735 DEFB 0,0 Unused
The next eight bytes are copied to 32993 and define the item graphic.
item60
64737 DEFB 72,57,38,218,91,100,156,18 Item graphic
The next four bytes are copied to 33001 and specify the rooms to the left, to the right, above and below.
64745 DEFB 0 Room to the left (The Off Licence)
64746 DEFB 59 Room to the right (The Yacht)
64747 DEFB 0 Room above (The Off Licence)
64748 DEFB 0 Room below (The Off Licence)
The next three bytes are copied to 33005, but are not used.
64749 DEFB 0,0,0 Unused
The next eight pairs of bytes are copied to 33008 and specify the entities (ropes, arrows, guardians) in this room.
64752 DEFB 105,23 Guardian no. 105 (horizontal), base sprite 0, initial x=23 (41800)
64754 DEFB 110,20 Guardian no. 110 (horizontal), base sprite 0, initial x=20 (41840)
64756 DEFB 255,0 Terminator (41976)
64758 DEFB 0,0 Nothing (40960)
64760 DEFB 0,0 Nothing (40960)
64762 DEFB 0,0 Nothing (40960)
64764 DEFB 0,0 Nothing (40960)
64766 DEFB 0,0 Nothing (40960)
