64256: Room 59: The Yacht (teleport: 124569)
Used by the routine at 35090.

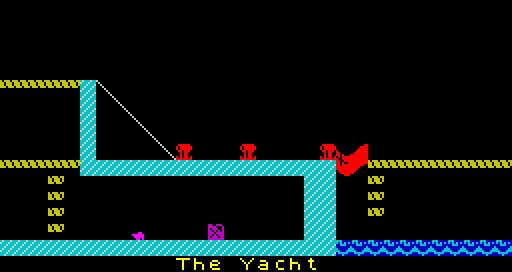

the_yacht
The first 128 bytes are copied to 32768 and define the room layout. Each bit-pair (bits 7 and 6, 5 and 4, 3 and 2, or 1 and 0 of each byte) determines the type of tile (background, floor, wall or nasty) that will be drawn at the corresponding location.
Input
Output
64256 DEFB 0,0,0,0,0,0,0,0 Room layout
64264 DEFB 0,0,0,0,0,0,0,0
64272 DEFB 0,0,0,0,0,0,0,0
64280 DEFB 0,0,0,0,0,0,0,0
64288 DEFB 0,0,0,0,0,0,0,0
64296 DEFB 85,96,0,0,0,0,0,0
64304 DEFB 0,32,0,0,0,0,0,0
64312 DEFB 0,32,0,0,0,0,0,0
64320 DEFB 0,32,0,0,0,0,0,0
64328 DEFB 0,32,3,3,0,192,0,0
64336 DEFB 85,106,170,170,170,129,85,85
64344 DEFB 1,0,0,0,2,129,0,0
64352 DEFB 1,0,0,0,2,129,0,0
64360 DEFB 1,0,0,0,2,129,0,0
64368 DEFB 1,0,0,0,2,128,0,0
64376 DEFB 170,170,170,170,170,128,0,0
The next 32 bytes are copied to 32896 and specify the room name.
64384 DEFM " The Yacht " Room name
The next 54 bytes are copied to 32928 and contain the attributes and graphic data for the tiles used to build the room.
background59 floor59 wall59 nasty59 ramp59 conveyor59
64416 DEFB 0,0,0,0,0,0,0,0,0 Background
64425 DEFB 6,187,221,221,238,0,0,0,0 Floor
64434 DEFB 61,187,119,238,221,187,119,238,221 Wall
64443 DEFB 66,126,191,191,110,44,44,173,255 Nasty
64452 DEFB 7,128,64,32,16,8,4,2,1 Ramp
64461 DEFB 13,224,170,56,1,131,199,124,16 Conveyor
The next four bytes are copied to 32982 and specify the direction, location and length of the conveyor.
64470 DEFB 0 Direction (left)
64471 DEFW 24565 Location in the attribute buffer at 24064: (15,21)
64473 DEFB 11 Length
The next four bytes are copied to 32986 and specify the direction, location and length of the ramp.
64474 DEFB 0 Direction (up to the left)
64475 DEFW 24362 Location in the attribute buffer at 24064: (9,10)
64477 DEFB 5 Length
The next byte is copied to 32990 and specifies the border colour.
64478 DEFB 5 Border colour
The next two bytes are copied to 32991, but are not used.
64479 DEFB 0,0 Unused
The next eight bytes are copied to 32993 and define the item graphic.
item59
64481 DEFB 206,241,185,213,239,215,187,255 Item graphic
The next four bytes are copied to 33001 and specify the rooms to the left, to the right, above and below.
64489 DEFB 60 Room to the left (The Bow)
64490 DEFB 58 Room to the right (The Beach)
64491 DEFB 0 Room above (The Off Licence)
64492 DEFB 0 Room below (The Off Licence)
The next three bytes are copied to 33005, but are not used.
64493 DEFB 0,0,0 Unused
The next eight pairs of bytes are copied to 33008 and specify the entities (ropes, arrows, guardians) in this room.
64496 DEFB 53,8 Guardian no. 53 (horizontal), base sprite 0, initial x=8 (41384)
64498 DEFB 27,21 Guardian no. 27 (vertical), base sprite 0, x=21 (41176)
64500 DEFB 255,17 Terminator (41976)
64502 DEFB 0,0 Nothing (40960)
64504 DEFB 0,0 Nothing (40960)
64506 DEFB 0,0 Nothing (40960)
64508 DEFB 0,0 Nothing (40960)
64510 DEFB 0,0 Nothing (40960)
