63232: Room 55: West Bedroom (teleport: 123569)
Used by the routine at 35090.

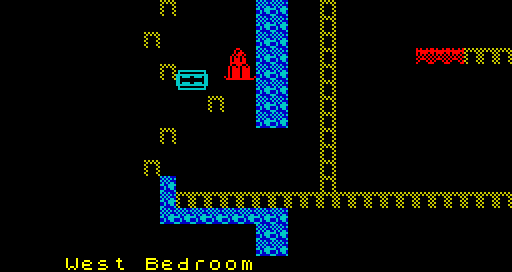

west_bedroom
The first 128 bytes are copied to 32768 and define the room layout. Each bit-pair (bits 7 and 6, 5 and 4, 3 and 2, or 1 and 0 of each byte) determines the type of tile (background, floor, wall or nasty) that will be drawn at the corresponding location.
Input
Output
63232 DEFB 0,0,4,0,160,64,0,0 Room layout
63240 DEFB 0,0,0,0,160,64,0,0
63248 DEFB 0,0,16,0,160,64,0,0
63256 DEFB 0,0,0,0,160,64,0,21
63264 DEFB 0,0,4,0,160,64,0,0
63272 DEFB 0,0,0,0,160,64,0,0
63280 DEFB 0,0,0,16,160,64,0,0
63288 DEFB 0,0,0,0,160,64,0,0
63296 DEFB 0,0,4,0,0,64,0,0
63304 DEFB 0,0,0,0,0,64,0,0
63312 DEFB 0,0,16,0,0,64,0,0
63320 DEFB 0,0,8,0,0,64,0,0
63328 DEFB 0,0,9,85,85,85,85,85
63336 DEFB 0,0,10,170,160,0,0,0
63344 DEFB 0,0,0,0,160,0,0,0
63352 DEFB 0,0,0,0,160,0,0,0
The next 32 bytes are copied to 32896 and specify the room name.
63360 DEFM " West Bedroom " Room name
The next 54 bytes are copied to 32928 and contain the attributes and graphic data for the tiles used to build the room.
background55 floor55 wall55 nasty55 ramp55 conveyor55
63392 DEFB 0,0,0,0,0,0,0,0,0 Background
63401 DEFB 6,170,85,130,65,130,65,130,65 Floor
63410 DEFB 13,168,85,168,86,207,46,38,193 Wall
63419 DEFB 255,0,0,0,0,0,0,0,0 Nasty (unused)
63428 DEFB 255,0,0,0,0,0,0,0,0 Ramp (unused)
63437 DEFB 66,165,255,189,170,85,186,69,131 Conveyor
The next four bytes are copied to 32982 and specify the direction, location and length of the conveyor.
63446 DEFB 0 Direction (left)
63447 DEFW 24186 Location in the attribute buffer at 24064: (3,26)
63449 DEFB 3 Length
The next four bytes are copied to 32986 and specify the direction, location and length of the ramp.
63450 DEFB 0 Direction (up to the left)
63451 DEFW 0 Location in the attribute buffer at 24064 (unused)
63453 DEFB 0 Length: 0 (there is no ramp in this room)
The next byte is copied to 32990 and specifies the border colour.
63454 DEFB 5 Border colour
The next two bytes are copied to 32991, but are not used.
63455 DEFB 0,0 Unused
The next eight bytes are copied to 32993 and define the item graphic.
item55
63457 DEFB 0,0,0,0,0,0,0,0 Item graphic (unused)
The next four bytes are copied to 33001 and specify the rooms to the left, to the right, above and below.
63465 DEFB 0 Room to the left (The Off Licence)
63466 DEFB 54 Room to the right (West  Wing)
63467 DEFB 57 Room above (Above the West Bedroom)
63468 DEFB 53 Room below (Back Door)
The next three bytes are copied to 33005, but are not used.
63469 DEFB 0,0,0 Unused
The next eight pairs of bytes are copied to 33008 and specify the entities (ropes, arrows, guardians) in this room.
63472 DEFB 30,139 Guardian no. 30 (vertical), base sprite 4, x=11 (41200)
63474 DEFB 51,78 Guardian no. 51 (vertical), base sprite 2, x=14 (41368)
63476 DEFB 255,0 Terminator (41976)
63478 DEFB 0,0 Nothing (40960)
63480 DEFB 0,0 Nothing (40960)
63482 DEFB 0,0 Nothing (40960)
63484 DEFB 0,0 Nothing (40960)
63486 DEFB 0,0 Nothing (40960)
