55296: Attack of the Mutant Telephones (teleport: 246)
Used by the routine at 34436.

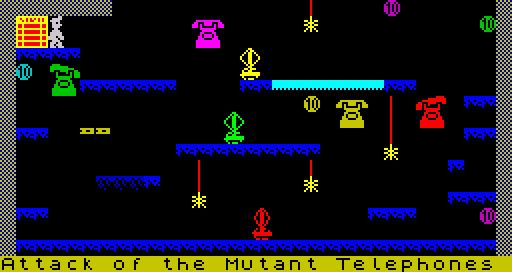

attack_of_the_mutant_telephones
The first 512 bytes are the attributes that define the layout of the cavern.
55296 DEFB 14,14,14,14,14,14,14,0 Attributes
55304 DEFB 0,0,0,0,0,0,0,0
55312 DEFB 0,0,0,66,0,0,0,0
55320 DEFB 0,0,0,0,0,0,0,14
55328 DEFB 14,0,0,0,0,0,0,0
55336 DEFB 0,0,0,0,0,0,0,0
55344 DEFB 0,0,0,70,0,0,0,0
55352 DEFB 0,0,0,0,0,0,0,14
55360 DEFB 14,0,0,0,0,0,0,0
55368 DEFB 0,0,0,0,0,0,0,0
55376 DEFB 0,0,0,0,0,0,0,0
55384 DEFB 0,0,0,0,0,0,0,14
55392 DEFB 14,65,65,65,65,0,0,0
55400 DEFB 0,0,0,0,0,0,0,0
55408 DEFB 0,0,0,0,0,0,0,0
55416 DEFB 0,0,0,0,0,0,0,14
55424 DEFB 14,0,0,0,0,0,0,0
55432 DEFB 0,0,0,0,0,0,0,0
55440 DEFB 0,0,0,0,0,0,0,0
55448 DEFB 0,0,0,0,0,0,0,14
55456 DEFB 14,0,0,0,0,65,65,65
55464 DEFB 65,65,65,0,0,0,0,65
55472 DEFB 65,69,69,69,69,69,69,69
55480 DEFB 65,65,0,0,0,0,0,14
55488 DEFB 14,0,0,0,0,0,0,0
55496 DEFB 0,0,0,0,0,0,0,0
55504 DEFB 0,0,0,0,0,0,0,0
55512 DEFB 66,0,0,0,0,65,65,14
55520 DEFB 14,0,0,0,0,0,0,0
55528 DEFB 0,0,0,0,0,0,0,0
55536 DEFB 0,0,0,0,0,0,0,0
55544 DEFB 66,0,0,0,0,0,0,14
55552 DEFB 14,65,65,0,0,6,6,0
55560 DEFB 0,0,0,0,0,0,0,0
55568 DEFB 0,0,0,0,0,0,0,0
55576 DEFB 66,0,0,0,0,65,65,14
55584 DEFB 14,0,0,0,0,0,0,0
55592 DEFB 0,0,0,65,65,65,65,65
55600 DEFB 65,65,65,65,0,0,0,0
55608 DEFB 70,0,0,0,0,0,0,14
55616 DEFB 14,0,0,0,0,0,0,0
55624 DEFB 0,0,0,0,66,0,0,0
55632 DEFB 0,0,0,66,0,0,0,0
55640 DEFB 0,0,0,0,65,0,0,14
55648 DEFB 14,0,0,0,0,0,1,1
55656 DEFB 1,65,0,0,66,0,0,0
55664 DEFB 0,0,0,70,0,0,0,0
55672 DEFB 0,0,0,0,0,0,0,14
55680 DEFB 14,0,0,0,0,0,0,0
55688 DEFB 0,0,0,0,70,0,0,0
55696 DEFB 0,0,0,0,0,0,0,0
55704 DEFB 0,0,0,0,65,65,65,14
55712 DEFB 14,65,65,0,0,0,0,0
55720 DEFB 0,0,0,0,0,0,0,0
55728 DEFB 0,0,0,0,0,0,0,65
55736 DEFB 65,65,0,0,0,0,0,14
55744 DEFB 14,0,0,0,0,0,0,0
55752 DEFB 0,0,0,0,0,0,0,0
55760 DEFB 0,0,0,0,0,0,0,0
55768 DEFB 0,0,0,0,0,0,0,14
55776 DEFB 14,65,65,65,65,65,65,65
55784 DEFB 65,65,65,65,65,65,65,65
55792 DEFB 65,65,65,65,65,65,65,65
55800 DEFB 65,65,65,65,65,65,65,14
The next 32 bytes are copied to 32768 and specify the cavern name.
55808 DEFM "Attack of the Mutant Telephones " Cavern name
The next 72 bytes are copied to 32800 and contain the attributes and graphic data for the tiles used to build the cavern.
background_10 floor_10 crumbling_floor_10 wall_10 conveyor_10 nasty1_10 nasty2_10 extra_10
55840 DEFB 0,0,0,0,0,0,0,0,0 Background
55849 DEFB 65,255,255,219,110,197,64,0,0 Floor
55858 DEFB 1,255,219,165,36,82,32,8,0 Crumbling floor
55867 DEFB 14,170,85,170,85,170,85,170,85 Wall
55876 DEFB 6,254,102,254,0,0,0,0,0 Conveyor
55885 DEFB 70,16,16,214,56,214,56,84,146 Nasty 1
55894 DEFB 66,16,16,16,16,16,16,16,16 Nasty 2
55903 DEFB 69,255,255,255,255,170,0,0,0 Extra
The next seven bytes are copied to 32872-32878 and specify Miner Willy's initial location and appearance in the cavern.
55912 DEFB 16 Pixel y-coordinate * 2 (see 32872)
55913 DEFB 0 Animation frame (see 32873)
55914 DEFB 0 Direction and movement flags: facing right (see 32874)
55915 DEFB 0 Airborne status indicator (see 32875)
55916 DEFW 23587 Location in the attribute buffer at 23552: (1,3) (see 32876)
55918 DEFB 0 Jumping animation counter (see 32878)
The next four bytes are copied to 32879 and specify the direction, location and length of the conveyor.
55919 DEFB 0 Direction (left)
55920 DEFW 30725 Location in the screen buffer at 28672: (8,5)
55922 DEFB 2 Length
The next byte is copied to 32883 and specifies the border colour.
55923 DEFB 2 Border colour
The next byte is copied to 32884, but is not used.
55924 DEFB 0 Unused
The next 25 bytes are copied to 32885 and specify the location and initial colour of the items in the cavern.
55925 DEFB 3 Item 1 at (0,24)
55926 DEFW 23576
55928 DEFB 96
55929 DEFB 255
55930 DEFB 4 Item 2 at (1,30)
55931 DEFW 23614
55933 DEFB 96
55934 DEFB 255
55935 DEFB 5 Item 3 at (4,1)
55936 DEFW 23681
55938 DEFB 96
55939 DEFB 255
55940 DEFB 6 Item 4 at (6,19)
55941 DEFW 23763
55943 DEFB 96
55944 DEFB 255
55945 DEFB 3 Item 5 at (13,30)
55946 DEFW 23998
55948 DEFB 104
55949 DEFB 255
55950 DEFB 255 Terminator
The next 37 bytes are copied to 32911 and define the portal graphic and its location.
portal10
55951 DEFB 86 Attribute
55952 DEFB 255,255,218,171,234,107,255,255 Graphic data
55960 DEFB 144,9,144,9,255,255,144,9
55968 DEFB 144,9,255,255,144,9,144,9
55976 DEFB 255,255,144,9,144,9,255,255
55984 DEFW 23585 Location in the attribute buffer at 23552: (1,1)
55986 DEFW 24609 Location in the screen buffer at 24576: (1,1)
The next eight bytes are copied to 32948 and define the item graphic.
item10
55988 DEFB 60,90,149,213,213,213,90,60 Item graphic data
The next byte is copied to 32956 and specifies the initial air supply in the cavern.
55996 DEFB 63 Air
The next byte is copied to 32957 and initialises the game clock.
55997 DEFB 128 Game clock
The next 28 bytes are copied to 32958 and define the horizontal guardians.
55998 DEFB 70 Horizontal guardian 1: y=3, initial x=15, 15<=x<=24, speed=normal
55999 DEFW 23663
56001 DEFB 96
56002 DEFB 0
56003 DEFB 111
56004 DEFB 120
56005 DEFB 196 Horizontal guardian 2: y=7, initial x=14, 14<=x<=18, speed=slow
56006 DEFW 23790
56008 DEFB 96
56009 DEFB 0
56010 DEFB 238
56011 DEFB 242
56012 DEFB 66 Horizontal guardian 3: y=13, initial x=15, 5<=x<=19, speed=normal
56013 DEFW 23983
56015 DEFB 104
56016 DEFB 7
56017 DEFB 165
56018 DEFB 179
56019 DEFB 255,0,0,0,0,0,0 Horizontal guardian 4 (unused)
56026 DEFB 255 Terminator
The next two bytes are copied to 32987 and 32988 but are not used.
56027 DEFB 0,0 Unused
The next 28 bytes are copied to 32989 and define the vertical guardians.
56029 DEFB 67 Vertical guardian 1: x=12, initial y=8, 2<=y<56, initial y-increment=2
56030 DEFB 0
56031 DEFB 8
56032 DEFB 12
56033 DEFB 2
56034 DEFB 2
56035 DEFB 56
56036 DEFB 4 Vertical guardian 2: x=3, initial y=32, 32<=y<100, initial y-increment=1
56037 DEFB 1
56038 DEFB 32
56039 DEFB 3
56040 DEFB 1
56041 DEFB 32
56042 DEFB 100
56043 DEFB 6 Vertical guardian 3: x=21, initial y=48, 48<=y<100, initial y-increment=1
56044 DEFB 2
56045 DEFB 48
56046 DEFB 21
56047 DEFB 1
56048 DEFB 48
56049 DEFB 100
56050 DEFB 66 Vertical guardian 4: x=26, initial y=48, 4<=y<100, initial y-increment=-3
56051 DEFB 3
56052 DEFB 48
56053 DEFB 26
56054 DEFB 253
56055 DEFB 4
56056 DEFB 100
56057 DEFB 255 Terminator
The next 6 bytes are unused.
56058 DEFB 0,0,0,0,0,0 Unused
The next 256 bytes are copied to 33024 and define the guardian graphics.
attack_of_the_mutant_telephones_guardian0 attack_of_the_mutant_telephones_guardian1 attack_of_the_mutant_telephones_guardian2 attack_of_the_mutant_telephones_guardian3 attack_of_the_mutant_telephones_guardian4 attack_of_the_mutant_telephones_guardian5 attack_of_the_mutant_telephones_guardian6 attack_of_the_mutant_telephones_guardian7
56064 DEFB 0,0,0,0,63,252,99,198 Guardian graphic data
56072 DEFB 235,215,232,23,15,240,7,224
56080 DEFB 12,48,11,208,27,216,28,56
56088 DEFB 63,252,63,252,63,252,63,252
56096 DEFB 60,0,127,192,127,248,99,198
56104 DEFB 8,87,8,23,15,247,7,224
56112 DEFB 12,48,11,208,27,216,28,56
56120 DEFB 63,252,63,252,63,252,63,252
56128 DEFB 0,0,0,0,63,252,99,198
56136 DEFB 235,215,232,23,15,240,7,224
56144 DEFB 12,48,11,208,27,216,28,56
56152 DEFB 63,252,63,252,63,252,63,252
56160 DEFB 0,60,3,254,31,254,99,198
56168 DEFB 234,16,232,16,239,240,7,224
56176 DEFB 12,48,11,208,27,216,28,56
56184 DEFB 63,252,63,252,63,252,63,252
56192 DEFB 12,0,22,0,45,0,76,128
56200 DEFB 140,64,140,64,76,128,45,0
56208 DEFB 22,0,12,0,55,0,76,0
56216 DEFB 127,192,255,192,64,128,46,0
56224 DEFB 3,0,3,0,5,128,7,128
56232 DEFB 11,64,11,64,7,128,5,128
56240 DEFB 3,0,3,0,14,192,3,32
56248 DEFB 63,224,63,240,16,32,7,64
56256 DEFB 0,192,0,192,0,192,0,192
56264 DEFB 0,128,0,128,0,192,0,192
56272 DEFB 0,192,0,192,1,208,4,200
56280 DEFB 15,252,15,248,0,8,3,176
56288 DEFB 0,48,0,104,0,180,0,180
56296 DEFB 1,50,1,50,0,180,0,180
56304 DEFB 0,104,0,48,0,184,1,50
56312 DEFB 3,255,1,255,1,0,0,220
