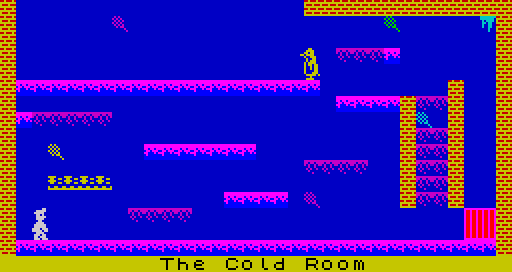

46080: The Cold Room (teleport: 16)
Used by the routine at 34436.
the_cold_room
The first 512 bytes are the attributes that define the layout of the cavern.
46080 DEFB 22,8,8,8,8,8,8,8 Attributes
46088 DEFB 8,8,8,8,8,8,8,8
46096 DEFB 8,8,8,22,22,22,22,22
46104 DEFB 22,22,22,22,22,22,22,22
46112 DEFB 22,8,8,8,8,8,8,8
46120 DEFB 8,8,8,8,8,8,8,8
46128 DEFB 8,8,8,8,8,8,8,8
46136 DEFB 8,8,8,8,8,8,13,22
46144 DEFB 22,8,8,8,8,8,8,8
46152 DEFB 8,8,8,8,8,8,8,8
46160 DEFB 8,8,8,8,8,8,8,8
46168 DEFB 8,8,8,8,8,8,8,22
46176 DEFB 22,8,8,8,8,8,8,8
46184 DEFB 8,8,8,8,8,8,8,8
46192 DEFB 8,8,8,8,8,11,11,11
46200 DEFB 75,8,8,8,8,8,8,22
46208 DEFB 22,8,8,8,8,8,8,8
46216 DEFB 8,8,8,8,8,8,8,8
46224 DEFB 8,8,8,8,8,8,8,8
46232 DEFB 8,8,8,8,8,8,8,22
46240 DEFB 22,75,75,75,75,75,75,75
46248 DEFB 75,75,75,75,75,75,75,75
46256 DEFB 75,75,75,75,8,8,8,8
46264 DEFB 8,8,8,8,22,8,8,22
46272 DEFB 22,8,8,8,8,8,8,8
46280 DEFB 8,8,8,8,8,8,8,8
46288 DEFB 8,8,8,8,8,75,75,75
46296 DEFB 75,22,11,11,22,8,8,22
46304 DEFB 22,75,11,11,11,11,11,8
46312 DEFB 8,8,8,8,8,8,8,8
46320 DEFB 8,8,8,8,8,8,8,8
46328 DEFB 8,22,8,8,22,8,8,22
46336 DEFB 22,8,8,8,8,8,8,8
46344 DEFB 8,8,8,8,8,8,8,8
46352 DEFB 8,8,8,8,8,8,8,8
46360 DEFB 8,22,11,11,22,8,8,22
46368 DEFB 22,8,8,8,8,8,8,8
46376 DEFB 8,75,75,75,75,75,75,75
46384 DEFB 8,8,8,8,8,8,8,8
46392 DEFB 8,22,11,11,22,8,8,22
46400 DEFB 22,8,8,8,8,8,8,8
46408 DEFB 8,8,8,8,8,8,8,8
46416 DEFB 8,8,8,11,11,11,11,8
46424 DEFB 8,22,11,11,22,8,8,22
46432 DEFB 22,8,8,14,14,14,14,8
46440 DEFB 8,8,8,8,8,8,8,8
46448 DEFB 8,8,8,8,8,8,8,8
46456 DEFB 8,22,11,11,22,8,8,22
46464 DEFB 22,8,8,8,8,8,8,8
46472 DEFB 8,8,8,8,8,8,75,75
46480 DEFB 75,75,8,8,8,8,8,8
46488 DEFB 8,22,11,11,22,8,8,22
46496 DEFB 22,8,8,8,8,8,8,8
46504 DEFB 11,11,11,11,8,8,8,8
46512 DEFB 8,8,8,8,8,8,8,8
46520 DEFB 8,8,8,8,8,8,8,22
46528 DEFB 22,8,8,8,8,8,8,8
46536 DEFB 8,8,8,8,8,8,8,8
46544 DEFB 8,8,8,8,8,8,8,8
46552 DEFB 8,8,8,8,8,8,8,22
46560 DEFB 22,75,75,75,75,75,75,75
46568 DEFB 75,75,75,75,75,75,75,75
46576 DEFB 75,75,75,75,75,75,75,75
46584 DEFB 75,75,75,75,75,75,75,22
The next 32 bytes are copied to 32768 and specify the cavern name.
46592 DEFM " The Cold Room " Cavern name
The next 72 bytes are copied to 32800 and contain the attributes and graphic data for the tiles used to build the cavern.
background_1 floor_1 crumbling_floor_1 wall_1 conveyor_1 nasty1_1 nasty2_1 extra_1
46624 DEFB 8,0,0,0,0,0,0,0,0 Background
46633 DEFB 75,255,255,219,110,197,64,0,0 Floor
46642 DEFB 11,255,219,165,36,82,32,8,0 Crumbling floor
46651 DEFB 22,34,255,136,255,34,255,136,255 Wall
46660 DEFB 14,240,102,240,102,0,153,255,0 Conveyor
46669 DEFB 12,68,40,148,81,53,214,88,16 Nasty 1 (unused)
46678 DEFB 13,255,254,94,108,76,76,8,8 Nasty 2
46687 DEFB 0,0,0,0,0,0,0,0,0 Extra (unused)
The next seven bytes are copied to 32872-32878 and specify Miner Willy's initial location and appearance in the cavern.
46696 DEFB 208 Pixel y-coordinate * 2 (see 32872)
46697 DEFB 0 Animation frame (see 32873)
46698 DEFB 0 Direction and movement flags: facing right (see 32874)
46699 DEFB 0 Airborne status indicator (see 32875)
46700 DEFW 23970 Location in the attribute buffer at 23552: (13,2) (see 32876)
46702 DEFB 0 Jumping animation counter (see 32878)
The next four bytes are copied to 32879 and specify the direction, location and length of the conveyor.
46703 DEFB 1 Direction (right)
46704 DEFW 30819 Location in the screen buffer at 28672: (11,3)
46706 DEFB 4 Length
The next byte is copied to 32883 and specifies the border colour.
46707 DEFB 2 Border colour
The next byte is copied to 32884, but is not used.
46708 DEFB 0 Unused
The next 25 bytes are copied to 32885 and specify the location and initial colour of the items in the cavern.
46709 DEFB 11 Item 1 at (1,7)
46710 DEFW 23591
46712 DEFB 96
46713 DEFB 255
46714 DEFB 12 Item 2 at (1,24)
46715 DEFW 23608
46717 DEFB 96
46718 DEFB 255
46719 DEFB 13 Item 3 at (7,26)
46720 DEFW 23802
46722 DEFB 96
46723 DEFB 255
46724 DEFB 14 Item 4 at (9,3)
46725 DEFW 23843
46727 DEFB 104
46728 DEFB 255
46729 DEFB 11 Item 5 at (12,19)
46730 DEFW 23955
46732 DEFB 104
46733 DEFB 255
46734 DEFB 255 Terminator
The next 37 bytes are copied to 32911 and define the portal graphic and its location.
portal01
46735 DEFB 83 Attribute
46736 DEFB 255,255,146,73,146,73,146,73 Graphic data
46744 DEFB 146,73,146,73,146,73,146,73
46752 DEFB 146,73,146,73,146,73,146,73
46760 DEFB 146,73,146,73,146,73,255,255
46768 DEFW 23997 Location in the attribute buffer at 23552: (13,29)
46770 DEFW 26813 Location in the screen buffer at 24576: (13,29)
The next eight bytes are copied to 32948 and define the item graphic.
item01
46772 DEFB 80,168,84,168,84,44,2,1 Item graphic data
The next byte is copied to 32956 and specifies the initial air supply in the cavern.
46780 DEFB 63 Air
The next byte is copied to 32957 and initialises the game clock.
46781 DEFB 252 Game clock
The next 28 bytes are copied to 32958 and define the horizontal guardians.
46782 DEFB 14 Horizontal guardian 1: y=3, initial x=18, 1<=x<=18, speed=normal
46783 DEFW 23666
46785 DEFB 96
46786 DEFB 7
46787 DEFB 97
46788 DEFB 114
46789 DEFB 13 Horizontal guardian 2: y=13, initial x=29, 12<=x<=29, speed=normal
46790 DEFW 23997
46792 DEFB 104
46793 DEFB 7
46794 DEFB 172
46795 DEFB 189
46796 DEFB 255,0,0,0,0,0,0 Horizontal guardian 3 (unused)
46803 DEFB 0,0,0,0,0,0,0 Horizontal guardian 4 (unused)
46810 DEFB 255 Terminator
The next two bytes are copied to 32987 and 32988 but are not used.
46811 DEFB 0,0 Unused
The next byte is copied to 32989 and indicates that there are no vertical guardians in this cavern.
46813 DEFB 255 Terminator
The next two bytes are unused.
46814 DEFB 0,0 Unused
The next 32 bytes define the plinth graphic that appears on the Game Over screen.
plinth
46816 DEFB 255,255,114,78,138,81,170,85 Plinth graphic data
46824 DEFB 74,82,18,72,34,68,42,84
46832 DEFB 42,84,42,84,42,84,42,84
46840 DEFB 42,84,42,84,42,84,42,84
The next 256 bytes are copied to 33024 and define the guardian graphics.
the_cold_room_guardian0 the_cold_room_guardian1 the_cold_room_guardian2 the_cold_room_guardian3 the_cold_room_guardian4 the_cold_room_guardian5 the_cold_room_guardian6 the_cold_room_guardian7
46848 DEFB 12,0,30,0,27,0,30,192 Guardian graphic data
46856 DEFB 57,0,50,0,58,0,61,0
46864 DEFB 109,0,105,0,105,0,97,0
46872 DEFB 113,0,190,0,8,0,30,0
46880 DEFB 3,0,7,128,6,192,7,176
46888 DEFB 14,64,12,128,15,128,13,192
46896 DEFB 27,64,27,64,22,64,24,64
46904 DEFB 28,64,47,128,5,64,15,128
46912 DEFB 0,192,1,224,1,176,1,236
46920 DEFB 3,144,3,32,3,160,3,208
46928 DEFB 6,208,6,144,6,144,6,16
46936 DEFB 7,16,11,232,2,80,7,224
46944 DEFB 0,48,0,120,0,108,0,123
46952 DEFB 0,228,0,200,0,232,0,244
46960 DEFB 1,180,1,148,1,148,1,132
46968 DEFB 1,196,2,248,0,84,0,248
46976 DEFB 12,0,30,0,54,0,222,0
46984 DEFB 39,0,19,0,23,0,47,0
46992 DEFB 45,128,41,128,41,128,33,128
47000 DEFB 35,128,31,64,42,0,31,0
47008 DEFB 3,0,7,128,13,128,55,128
47016 DEFB 9,192,4,192,5,192,11,192
47024 DEFB 11,96,9,96,9,96,8,96
47032 DEFB 8,224,23,208,10,64,7,224
47040 DEFB 0,192,1,224,3,96,13,224
47048 DEFB 2,112,1,48,1,240,3,176
47056 DEFB 2,216,2,216,2,104,2,24
47064 DEFB 2,56,1,244,2,160,1,240
47072 DEFB 0,48,0,120,0,216,3,120
47080 DEFB 0,156,0,76,0,92,0,188
47088 DEFB 0,182,0,150,0,150,0,134
47096 DEFB 0,142,0,125,0,16,0,120
