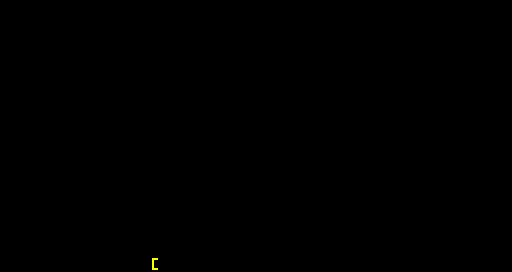

61184: Room 47: [ (teleport: 123469)
This room is not used.
left_square_bracket
The first 128 bytes define the room layout. Each bit-pair (bits 7 and 6, 5 and 4, 3 and 2, or 1 and 0 of each byte) determines the type of tile (background, floor, wall or nasty) that will be drawn at the corresponding location.
Input
Output
61184 DEFB 0,0,0,0,0,0,0,0 Room layout (completely empty)
61192 DEFB 0,0,0,0,0,0,0,0
61200 DEFB 0,0,0,0,0,0,0,0
61208 DEFB 0,0,0,0,0,0,0,0
61216 DEFB 0,0,0,0,0,0,0,0
61224 DEFB 0,0,0,0,0,0,0,0
61232 DEFB 0,0,0,0,0,0,0,0
61240 DEFB 0,0,0,0,0,0,0,0
61248 DEFB 0,0,0,0,0,0,0,0
61256 DEFB 0,0,0,0,0,0,0,0
61264 DEFB 0,0,0,0,0,0,0,0
61272 DEFB 0,0,0,0,0,0,0,0
61280 DEFB 0,0,0,0,0,0,0,0
61288 DEFB 0,0,0,0,0,0,0,0
61296 DEFB 0,0,0,0,0,0,0,0
61304 DEFB 0,0,0,0,0,0,0,0
The next 32 bytes specify the room name.
61312 DEFM " [ " Room name
In a working room definition, the next 80 bytes define the tiles, conveyor, ramp, border colour, item graphic, and exits. In this room, however, there are code remnants and unused data.
61344 DEFB 0,0,0,0,0,0,0,0,0 Background tile
61353 DEFB 0,0,0,0,0,0,0,0
61361 INC B
61362 LD (HL),0
61364 JP NZ,25315
61367 INC (IX+6)
61370 DEFB 16,255
61372 LD (IX+10),C
61375 LD (HL),B
61376 JP 24150
61379 LD BC,24583
61382 LD A,(16526)
61385 JR NZ,61411
61387 PUSH HL
61388 PUSH BC
61389 PUSH AF
61390 LD DE,24296
61393 PUSH DE
61394 PUSH BC
61395 RET
61396 POP AF
61397 POP BC
61398 DEC A
61399 DEFB 242,224
61401 DEFB 0 Conveyor length (deliberately set to 0)
61402 POP HL
61403 RET
61404 POP BC
61405 DEFB 0 Ramp length (deliberately set to 0)
61406 LD A,(HL)
61407 CP 44
61409 RET NZ
61410 RST 16
61411 PUSH BC
61412 LD A,(HL)
61413 CP 35
61415 CALL Z,7544
61418 CALL 11036
61421 EX (SP),HL
61422 PUSH HL
61423 DEFB 17
The next eight pairs of bytes specify the entities (ropes, arrows, guardians) in this room.
61424 DEFB 255,0 Terminator (41976)
61426 DEFB 0,0 Nothing (40960)
61428 DEFB 0,0 Nothing (40960)
61430 DEFB 0,0 Nothing (40960)
61432 DEFB 0,0 Nothing (40960)
61434 DEFB 0,0 Nothing (40960)
61436 DEFB 0,0 Nothing (40960)
61438 DEFB 0,0 Nothing (40960)
