60672: Room 45: Under the Drive (teleport: 13469)
Used by the routine at 35090.

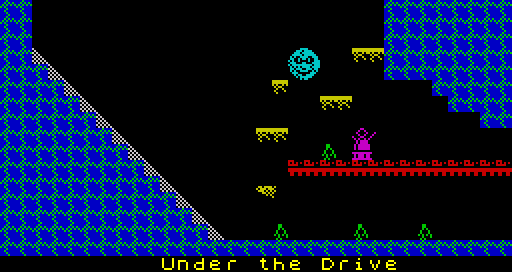

under_the_drive
The first 128 bytes are copied to 32768 and define the room layout. Each bit-pair (bits 7 and 6, 5 and 4, 3 and 2, or 1 and 0 of each byte) determines the type of tile (background, floor, wall or nasty) that will be drawn at the corresponding location.
Input
Output
60672 DEFB 160,0,0,0,0,0,170,170 Room layout
60680 DEFB 160,0,0,0,0,0,170,170
60688 DEFB 160,0,0,0,0,0,170,170
60696 DEFB 160,0,0,0,0,5,170,170
60704 DEFB 168,0,0,0,0,0,170,170
60712 DEFB 170,0,0,0,16,0,2,170
60720 DEFB 170,128,0,0,0,80,0,170
60728 DEFB 170,160,0,0,0,0,0,10
60736 DEFB 170,168,0,0,80,0,0,0
60744 DEFB 170,170,0,0,0,192,0,0
60752 DEFB 170,170,128,0,0,0,0,0
60760 DEFB 170,170,160,0,0,0,0,0
60768 DEFB 170,170,168,0,0,0,0,0
60776 DEFB 170,170,170,0,0,0,0,0
60784 DEFB 170,170,170,128,48,12,12,0
60792 DEFB 170,170,170,170,170,170,170,170
The next 32 bytes are copied to 32896 and specify the room name.
60800 DEFM " Under the Drive " Room name
The next 54 bytes are copied to 32928 and contain the attributes and graphic data for the tiles used to build the room.
background45 floor45 wall45 nasty45 ramp45 conveyor45
60832 DEFB 0,0,0,0,0,0,0,0,0 Background
60841 DEFB 6,255,255,165,88,36,66,32,0 Floor
60850 DEFB 12,16,42,85,160,16,32,16,8 Wall
60859 DEFB 4,24,24,20,34,34,85,17,40 Nasty
60868 DEFB 7,128,64,160,80,168,84,170,85 Ramp
60877 DEFB 2,224,170,248,0,255,255,102,102 Conveyor
The next four bytes are copied to 32982 and specify the direction, location and length of the conveyor.
60886 DEFB 0 Direction (left)
60887 DEFW 24402 Location in the attribute buffer at 24064: (10,18)
60889 DEFB 14 Length
The next four bytes are copied to 32986 and specify the direction, location and length of the ramp.
60890 DEFB 0 Direction (up to the left)
60891 DEFW 24525 Location in the attribute buffer at 24064: (14,13)
60893 DEFB 12 Length
The next byte is copied to 32990 and specifies the border colour.
60894 DEFB 4 Border colour
The next two bytes are copied to 32991, but are not used.
60895 DEFB 0,0 Unused
The next eight bytes are copied to 32993 and define the item graphic.
item45
60897 DEFB 129,100,205,15,97,218,51,26 Item graphic (unused)
The next four bytes are copied to 33001 and specify the rooms to the left, to the right, above and below.
60905 DEFB 6 Room to the left (Entrance to Hades)
60906 DEFB 46 Room to the right (Tree Root)
60907 DEFB 4 Room above (The Drive)
60908 DEFB 0 Room below (The Off Licence)
The next three bytes are copied to 33005, but are not used.
60909 DEFB 0,0,0 Unused
The next eight pairs of bytes are copied to 33008 and specify the entities (ropes, arrows, guardians) in this room.
60912 DEFB 28,16 Guardian no. 28 (horizontal), base sprite 0, initial x=16 (41184)
60914 DEFB 29,146 Guardian no. 29 (vertical), base sprite 4, x=18 (41192)
60916 DEFB 68,150 Guardian no. 68 (horizontal), base sprite 4, initial x=22 (41504)
60918 DEFB 255,0 Terminator (41976)
60920 DEFB 0,0 Nothing (40960)
60922 DEFB 0,0 Nothing (40960)
60924 DEFB 0,0 Nothing (40960)
60926 DEFB 0,0 Nothing (40960)
